Fullwaver resistivity dataset from the Pian Grande di Castelluccio basin, epicentral area of the 2016, Mw 6.5 earthquake (Central Italy)

Tipo Dataset Classe Dati Geofisici (Geomagnetici, Geoelettrici, Elettro-Magnetici)

40301 Basin Analysis Fos: Earth And Related Environmental Sciences Fos: Earth And Related Environmental Sciences 40401 Electrical And Electromagnetic Methods In Geophysics Solid Earth Sciences 40312 Structural Geology 40313 Tectonics

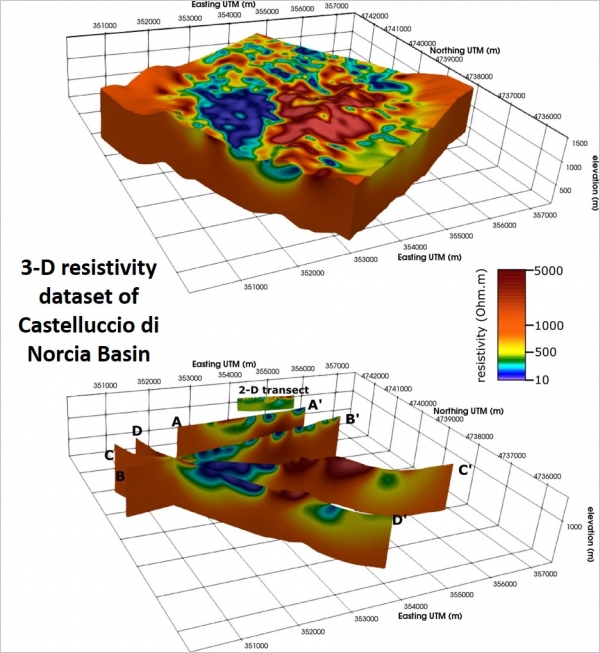

This dataset contains raw electrical resistivity data acquired with the Fulllwaver technology in the Pian Grande di Castelluccio Basin, in the epicentral area of the Mw 6.5 2016 earthquake (central Italy). The survey date is May 2019.The dataset consists of a 2-D survey (transect) and a large 3-D grid. The 3-D grid is further subdivided into two domains (EST and OVEST), which are inverted together. Raw pre-processed data are stored as bin files (directory BIN). In the "processing" directory the output of the inversions of the two separate datasets can be found. The "topo" directory contains the digital elevation model used for the 3-D inversion.Details on the structure of the files and the pre-processing steps can be found at the following link:https://github.com/fischanger/FW_Castelluccio_di_Norcia_2019A thorough discussion of the inversion procedure, sensitivity analysis and geological interpretation of this dataset is reported in the following paper:Sapia V., Villani F., Fischanger F., Lupi M., Baccheschi P., Pantosti D., Pucci S., Civico R., Sciarra A., Smedile A., Romano V., De Martini P.M., Murgia F., Materni V., Giannattasio F., Pizzimenti L., Ricci T., Brunori C.A., Coco I., Improta L., (2021). 3-D deep electrical resistivity tomography of the major basin related to the 2016 Mw 6.5 central Italy earthquake fault. Tectonics, https://doi.org/10.1029/2020TC006628 For any further detail, please contact the corresponding Author (Fabio Villani).e-mail: fabio.villani@ingv.it

Data e Risorse

Questo dataset non ha dati

Citare come

Villani F., Fischanger F., Sapia V., Lupi M., Improta L. (2021). Fullwaver resistivity dataset from the Pian Grande di Castelluccio basin, epicentral area of the 2016, Mw 6.5 earthquake (Central Italy) [Data set]. figshare. https://doi.org/10.6084/m9.figshare.14191319

Formati di codifica dei dati disponibili 7z ascii csv

Nome campo Valore
Identificativo del dataset (DOI) 10.6084/m9.figshare.14191319
Altro identificativo Codice: ingv_695
Gestore del codice: INGV
Temi del dataset Scienza e tecnologia
Editore del Dataset Figshare
Data di rilascio 01-01-2021
Data di modifica 11-03-2022
Copertura Geografica Area di competenza dell'unità organizzativa preposta
URI di GeoNames Non disponibile
Lingue del dataset italiano
Estensione temporale Non disponibile
Titolari Istituto Nazionale di Geofisica e Vulcanologia (INGV)
ROR 00qps9a02
IPA ingv
University of Geneva
ROR 01swzsf04
Frequenza di aggiornamento mai
Versione di Non disponibile
Spatial extent {"type": "MultiPoint","coordinates": [[13.212,42.817]]}
Autori VILLANI Fabio
Istituto Nazionale di Geofisica e Vulcanologia (INGV), Italy
FISCHANGER Federico
Geostudi Astier srl, Italy
SAPIA Vincenzo
Istituto Nazionale di Geofisica e Vulcanologia (INGV), Italy
LUPI Matteo
University of Geneva, Switzerland
IMPROTA Luigi
Istituto Nazionale di Geofisica e Vulcanologia (INGV), Italy

Progetti finanziatori

  • FISR 2016 - Centro di studio e monitoraggio dei rischi naturali dell'Italia centrale
    Ministero dell'Università e della Ricerca (MUR)
    [ 2017-07-01 ⇒ 2019-06-30 ]

Schema dati
